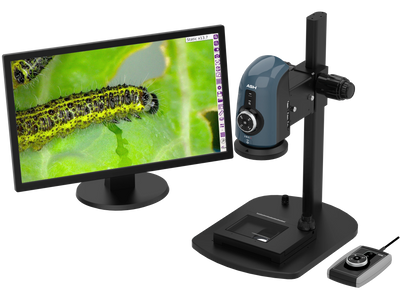

OMNI DIGITAL INSPECTION SYSTEM

---

 The Omni 3 digital microscope delivers superb full HD live, lag-free video for a broad range of quality control, testing, rework, assembly, inspection, and documentation tasks. The user interface is custom designed to deliver intuitive and efficient operation directly on the monitor, without the need for a PC. Specially designed task-specific applications can be added to expand the capabilities of the Omni 3 as needs change and work evolves. If customers can’t find it, it doesn’t exist. Clearly list and describe the services you offer. Also, be sure to showcase a premium service.

• Operate the Omni 3 directly from a monitor with a mouse, or use the controls on the front of the unit.
• The Omni 3 is precalibrated at the factory featuring the patented AshCal™ technology, and tracks calibration across all zoom levels.
• Save files to internal or removable memory, or to a network location or by email via ethernet.
• Real Time Lens Distortion Correction™ ensures a "flat" image with no distortion across the field.
• New AshTruColour™ brings outstanding and accurate color reproduction in every image.
• New super fast Auto-Focus, SpotFocus™ and manual Rocker Focus.
• User privileges increases efficiency and reduces operational error.
• Start with the Core, then add apps as you need them: 2D Measurement, Annotation and Graticules; DXF File Importer; Image Comparator Overlay; Side by Side Image Comparator; Image Stacking; Image Stitching; Z Height Measurement; Color Analysis; Object Counting
  • TEST DRIVE THE FULL POWER OF THE OMNI 3 WITH FREE UNRESTRICTED ACCESS TO THE FULL SUITE OF ASH APPS (get 30 clicks of every app -- try before you buy!).

• 1080p Digital inspection station with 5D lens system.
• Magnification range 2.5X - 68X (on 24" monitor). Up to 136.5X with digital zoom.
• Camera resolution - 1080p, 1980 x 1080, 60fps.
• 195mm working distance (with 5D lens, included).
• HDMI output, four USB 2.0 ports, RJ45 Ethernet connector for networking, three general purpose I/O ports, DC 24v power jack.
• Internal image storage, removable USB image storage, USB on the go (PC Connectivity).
• Integrated LED ring light with intensity control; LED Lamp life approx. 40,000 hours.
• Wireless keyboard and wireless mouse included.
• HDMI-to-HDMI cable, mini USB cable and USB memory stick included.
• Grounding cable included.
• REQUIRES STAND. Stand not included.
• REQUIRES MONITOR. Monitor not included.
• Shipping weight 7lbs.Having a big sale, on-site celebrity, or other event? Be sure to announce it so everybody knows and gets excited about it.
•
