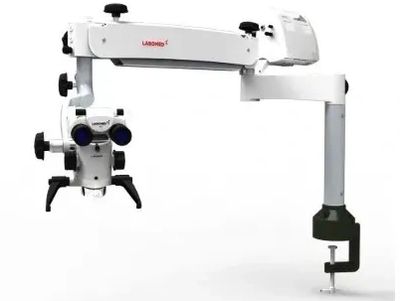

LABOMED PRIMA ENT/DNT MEDICAL MICROSCOPE

---

The Prima DNT comes equipped with an

Apochromatic optical system that promises

the most vivid and honest images in its class.

This is achieved with LABOMED’s proprietary

MaxLiteTM coatings that provi de highest

effi ciency in transmission and refl ection

through the entire vi sible spectrum. MaxLiteTM

renders optics with excellent anti-fungal, antifog

and scratch resistant properties.

To address digital documentation needs, a host

of digital SLR, vi deo camera, and CCD adapters

are made available with the ProLine range of

camera adapters & smart phone adapters.

• Observation tubes Standard: 0-210° Tiltable binocular tube
• IPD 48-78 mm
• Eyepieces Standard: WF 10X/18 mm with eye guards and dioptre lock mechanism
• Option: WF 12.5X/18 mm with eye guards and dioptre lock mechanism
• Dioptre Adjustment ± 5 mm
• Magnichanger Apochromatic 5 step: 0.4X, 0.6X, 1.0X, 1.6X and 2.5X *MaxLite coated
• Objective Standard f: 250 mm focusable;
• Options: f: 200 mm focusable; f: 300 mm focusable & f: 400 mm focusable
• NuVarTM 7: f 290-360 mm WD: 200-270 mm
• NuVarTM 10: f 300-400 mm WD: 220-320 mm
• NuVarTM 20: f 295-495 mm WD: 200-400 mm
• FOV 66-10.6 mm
• Magnification Range 2.7x-17.0x
• Fine focus Manual, through objective adjustment knob
• Light source 50W LED, 100-240V
• LUX 125K
• Maximum Wattage 200 Watts
• Color Temperature 6500K
• Built-in filters Green and Yellow
• Vertical movement of arm 550 mm with power saver light cut off at park position
• Microscope carriers 120˚ carrier
• Optional accessories Beam splitter (straight & inclined), Rotoplate, Extender, Double Iris,
• Low height Ergo view, ProLine range of camera adapters & Smart phone adapters
• Assistant binocular attachment
