unitron mec 4 metallurgical

---

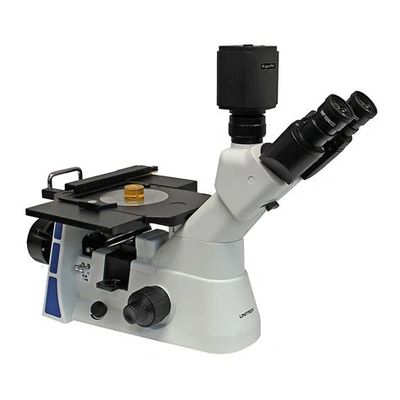

UNITRON’s new MEC4 inverted metallurgical microscope is designed for the examination and analysis of metallurgical samples and prepped material for the automotive, aerospace, medical device and electronics industries. The compact design of the MEC4 makes it an affordable inverted microscope with outstanding optical performance, perfect for in-line sample inspection for manufacturing, production and assembly applications where strict control of materials is required.

The MEC4 delivers, bright, crisp images at all magnification levels. With a wide range of c-mount adapters, the MEC4 can easily be connected to our Excelis HD or Lumenera® digital cameras for easy image processing. Designed for brightfield and simple polarization observation, the MEC4 delivers professional features at an affordable price in a compact, easy to use design.

• Optical System-UNITRON Infinity M Plan Achromat LWD 5x, 10x, 20xR and semi-apo 50x objectives Optional 100x dry objective is available
• Observation Method-Brightfield and simple polarizer/analyzer 360° rotating; blue, green and frosted filters
• Focusing-Vertical action movement revolving nosepiece (fixed stage); coaxial coarse and fine adjustment
• Nosepiece-Quintuple revolving nosepiece
• Stage-Plain stage: 160mm(W) x 250mm (L), includes Ø12mm and Ø25mm aperture teardrop stage insert plates Mechanical stage: travel range 120mm (X) 78mm (Y); the mechanical stage is standard on each complete unit; coaxial handle attachable to right side; includes Ø12mm and Ø25mm aperture teardrop rectangular stage plates Stage extender plate: 70mm X 180mm
• Illuminator-5 watt variable LED illuminator, built-in lever type condenser, field and aperture diaphragms filter slider for blue, green and frosted filters
• Eyepieces-WF10x/22mm focusing eyepieces with roll-down eyeguards
• Viewing Head-45° inclined trinocular viewing head with 54-75mm interpupillary adjustment Imaging Port 100% binocular or 20% binocular / 80% camera
• Dimensions & Weigh- 300 x 650 x 437.5mm (w x d x h) with mechanical stage; weight: 23 lbs.
• Accessories-Excelis HD, Lumenera®, and Micrometrics® cameras with measurement and materials software C-mount adapters with 0.35x, 0.50x, 0.65x, 1.0 x, and photo tube Reticles: crossline, grid, Austenite grain size and custom patterns are available
• Stage micrometers-Metric (mm) and English (inches) with NIST traceability are available
•
